FULLY AUTOMATIC DOMAIN CONTROL ASSEMBLY AND TESTING LINE BODY

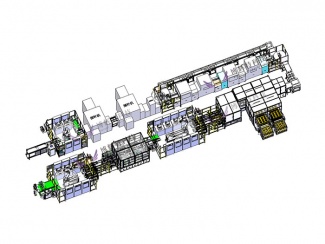

This line is a fully automatic intelligent assembly and testing production line for automotive body zone control modules (domain controllers). It covers two core sections: PCBA assembly & coating, and housing assembly & testing.
The line integrates 20+ processes including automatic PCBA loading, automatic programming, pin insertion, conformal coating, pin coating inspection, housing & PCBA assembly, barcode labeling, screw fastening, busbar inspection and assembly, functional testing, fuse and nut assembly, multi-label attachment, and final programming and configuration testing. The line supports mainstream domain controller products such as right zone (R2/R2-PRO) and rear zone (B2), enabling fully automatic integrated production from PCBA to finished control box.
The line integrates 20+ processes including automatic PCBA loading, automatic programming, pin insertion, conformal coating, pin coating inspection, housing & PCBA assembly, barcode labeling, screw fastening, busbar inspection and assembly, functional testing, fuse and nut assembly, multi-label attachment, and final programming and configuration testing. The line supports mainstream domain controller products such as right zone (R2/R2-PRO) and rear zone (B2), enabling fully automatic integrated production from PCBA to finished control box.
Product application areas
This device is used for the intelligent assembly and testing production line of the full braking control module in the car body area
The entire line is divided into two main parts (PCBA assembly coating section and shell assembly testing section):
The first part covers (PCBA assembly coating section): PCBA board feeding, automatic burning, PCBA board pins, PCBA board surface three proof paint coating, PIN pin coating detection;
The second part covers (shell assembly testing section): shell&PCBA assembly, barcode labeling, shell screw locking, copper bar inspection assembly, functional testing, fuse and nut assembly, tear resistant labels, EU labels, dust-proof cotton attachment, and finished product program configuration testing.
parameter
Capacity: 180PCS/H (monthly capacity can reach 100000 pcs/month/double shift)
Yield rate: 99%
Applicable products: Right domain (R2/R2-PRO), Rear domain (B2)
The entire line is divided into two main parts (PCBA assembly coating section and shell assembly testing section):
The first part covers (PCBA assembly coating section): PCBA board feeding, automatic burning, PCBA board pins, PCBA board surface three proof paint coating, PIN pin coating detection;
The second part covers (shell assembly testing section): shell&PCBA assembly, barcode labeling, shell screw locking, copper bar inspection assembly, functional testing, fuse and nut assembly, tear resistant labels, EU labels, dust-proof cotton attachment, and finished product program configuration testing.
parameter
Capacity: 180PCS/H (monthly capacity can reach 100000 pcs/month/double shift)
Yield rate: 99%
Applicable products: Right domain (R2/R2-PRO), Rear domain (B2)
